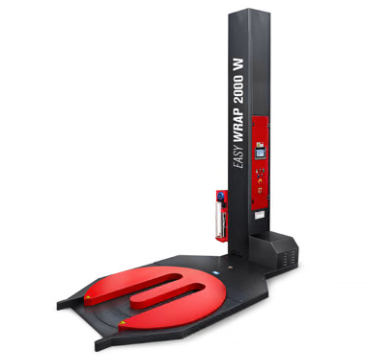

STEP Easy Wrap 2000AW Horseshoe Ø1650

Description

Machine structure in painted steel sheet
Mast hinged at the base for easy and quick installation
Film carriage by chain transmission
Turntable: Ø1650 mm Horseshoe type
Mast height: 2400 mm (useful height 2200 mm)
Environmental humidity conditions: ≤ 90\%
Operating temperature range: + 0° C to + 40 ° C
Machine controlled by PLC and color 7,2” touch screen
Film carriage fall protection system
Acoustic warning at the cycle start
Mechanical brake pre-stretch system
Ermegency stop in compliance with CE regulations
Front and back holes for forklifting of the machine
Inverter for soft start and indexed stop of the turntable

##PALLET SIZES##
Length Max.: 1.200mm
Width Max.: 1000mm
Wrapping Height max.: 2.200mm

##PARAMETERS ADJUSTABLE FROM CONTROL PANEL##
Number of rounds in bottom
Number of rounds in top
Adjustable turntable speed from 0 to 10 rpm
Carriage ascending and descending speed
Photo eye reading delay
Man / Auto function

##FUNCTIONS ACTIVATED BY CONTROL PANEL##
Cycle ascending and descending
Cycle only ascending
Top sheet function, Option

##SPECIFICATION##
Roll film height max: 500mm
Roll film diameter max: 280 mm
Max load weight: 1500 Kg
Net weight machine: 650 Kg
Power supply: 1
Machine dimensions: 2715 x 1665 x 2600 mm
Shipping dimensions: 2800x1800x800mm
Shipping Weight brut: Approx. 750kgs
