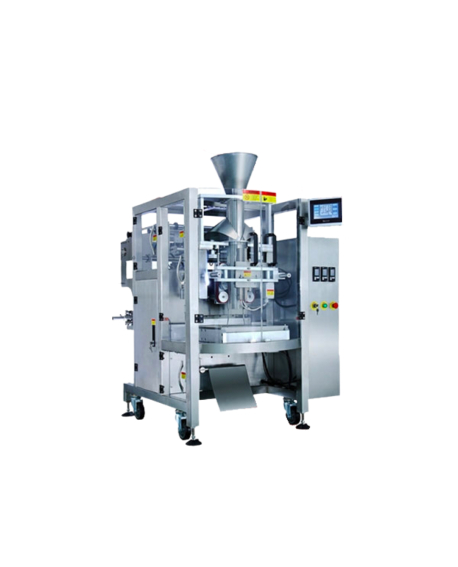

STEP VFFS 620 Vertikal posepakker
Price range: 99.800,00 kr. through 109.800,00 kr.
STEP VFFS 620.1 & STEP VFFS 620.2 are highly flexible VFFS Bagging Machine designed for high performance, fast economical and Robust and sanitary design suitable for a wide range of challenging industries from packing Snacks, Candy, Nuts, Seeds, Fresh Salad, Fruits, Pet Foods, Medical and Pharmaceutical Products.
Description
STEP VFFS 620.1 & STEP VFFS 620.2 are highly flexible machines, has excellent performance. It is designed to pack bags with a Width as much as 300mm with a Volume of up to 6 Liters, weights between 20-2500 grams. Makes vacuum packing and uses Gusseted, Pillow bags, High End components, equipped with PLC with Touch Screen Display, CE Compliant and requires little maintenance.
Features:
• Stainless Steel Construction #304 on Parts and Electrical Cabinet
• Has Various Operational Languages such as English and others
• One Piece Forming Set, easy to change and size to be specified
• Machine Auto Stops during End Film detection
• Eye Mark Controlled bag length
• Pneumatic Sealing
• Seals Laminated Films and Polythene Films
• Date Coder Included
• Up to 50 Programs can be Selected
• Synchronization for most weighing and dosing system
Specification:
• Servo system: Single or Double
• Packaging Speed:Max film width: 620 mm
• Single servo: 10-60 bpm
• Double Servo: 10-100 bpm
• Bag width: 80-300 mm
• Bag length: 50-380 mm
• Electrical connection 230V 50Hz, 4,5Kw
• Air requirements: 0,2m3 – 0,3m3/min., 0,6Mpa
• Machine dimension: 1600 x 1260 x 1680mm
Additional information
| Servo System VFFS | Single Servo System, Double Servo System for higher Speed |
|---|
No videos available.
Related Products

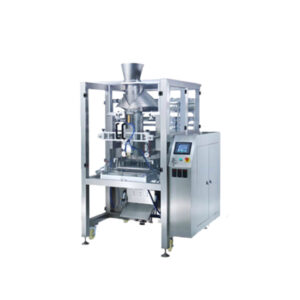

STEP VFFS 800 Vertikal Forme, Fylde og Svejse posemaskine
