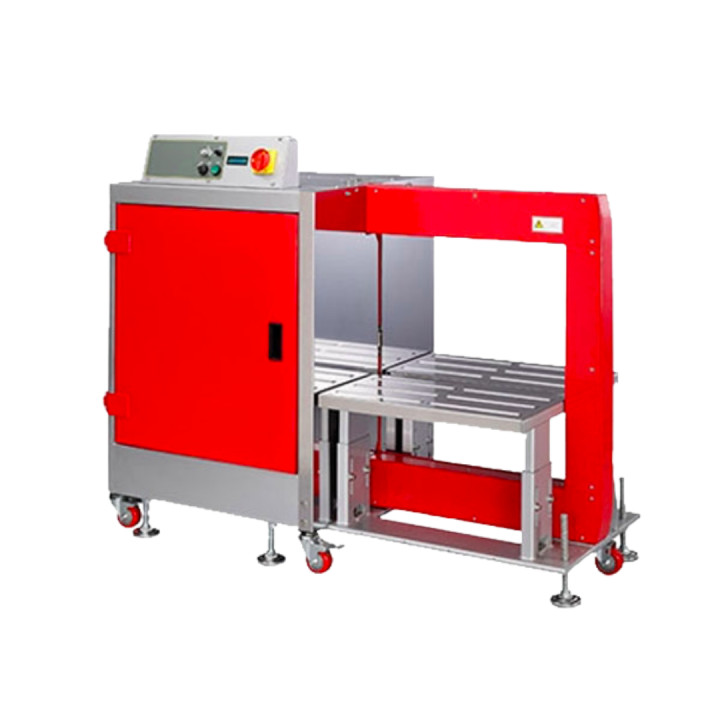

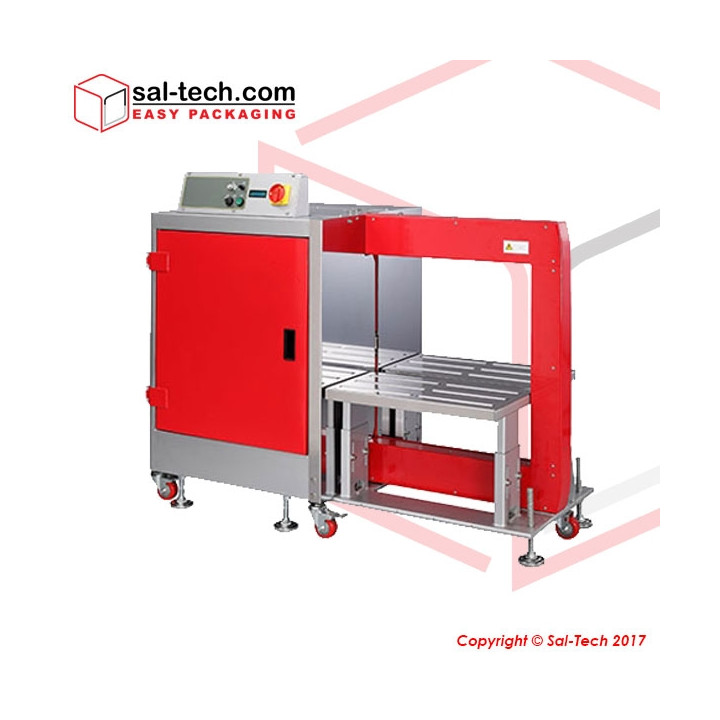

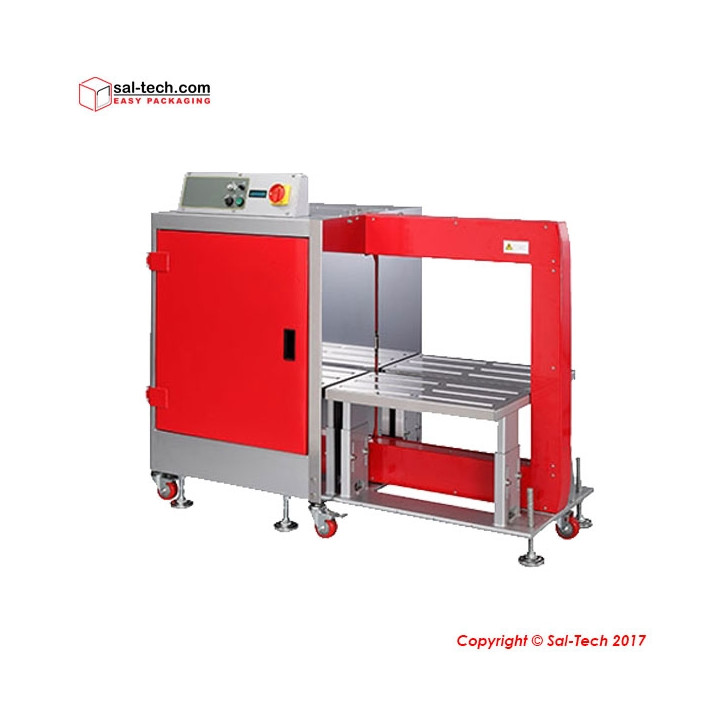

STEP TP-702Y Automatic Side Sealing Strapping Machine

STEP TP-702Y Automatic Side Sealing Strapping Machine

Reference 41199680 Items available 0 Condition New

79,990.00 DKK

Tax excluded

An automatic side sealing strapping machine that is suitable for a wide range of application. Appropriate for tying a huge and heavy product and household appliances. Strapping speed at 60 straps per minute, production is with certain accuracy and reliability.

Out-of-Stock

Side Sealing Strapping Machine STEP TP-702Y

Automatic Strapping Machine for Dusty Environments

The STEP TP-702Y is an automatic strapping machine with the sealing head fixed on the side, built to keep running in dusty environments — sawmills, brick plants, and tile production lines. It's available in several arch sizes, with an easy control display that keeps maintenance simple.

Fast, straightforward operation is the point: less time troubleshooting, more time running product through.

Standout Feature

Built for harsh, dusty environments — a German-made brushless motor and moisture-resistant strap dispenser keep it running where lesser machines fail.

Key Features

Strapping Head — Built for accuracy and reliability, with a German-made motor using the latest brushless motor technology.

Display Panel — A user-friendly interface for controlling operation and maintenance without guesswork.

Free Access to Strap Guides — Patented design gives quick access without needing separate tools, for easier maintenance.

Tension Force — A consistent downward force holds the bundle firm for a stronger package.

Strap Dispenser — A fully ergonomic, moisture-resistant design makes coil changes quick and low-effort.

Specifications

Strapping Speed	60 straps/minute
Strap Requirement	Width: 5mm, 6mm, 9mm, 12mm — Thickness: 0.35mm – 0.65mm
Tension Range	1–32kg (5mm, 6mm, 9mm) \| 1–45kg (12mm)
Dimension (W x D x H)	1450mm x 670mm x 1200–1300mm
Table Height	445mm – 645mm
Machine Net Weight	294kg
Package Weight (Maximum)	80kg
Package Dimension (W x H)	Min 30mm x 80mm — Max 550mm x 415mm (arch size 600mm x 650mm)
Strap Core Diameter	200mm
Conveyor Speed	10M – 45M/minute
Power Consumption	500W
Electrical Requirements	110/220/230/240V, 50/60Hz, 1PH \| 220/380/400/415V, 50/60Hz, 3PH

Arch Size Availability

H \ W	400	600<	800	1000	1300
650	—	STANDARD	—	N/A	—
850	N/A	—	—	N/A	—
1050	N/A	—	—	—	—
1250	N/A	—	—	—	—
1650	N/A	N/A	N/A	—	N/A

Options

— End cycle and error signals
— Dual press bar
— Small package handling
— Foot pedal switch
— Side pusher
— Light tree alarm with low-strap sensor (triple lamp)
— Energy-saving transit with auto sleep mode

Available In Different Models

TP-702YA Fully Automatic Side Sealing Strapping Machine
TP-702YM Steel Frame Automatic Side Sealing Machine
TP-702YAM Steel Frame Fully Automatic Side Sealing Machine
