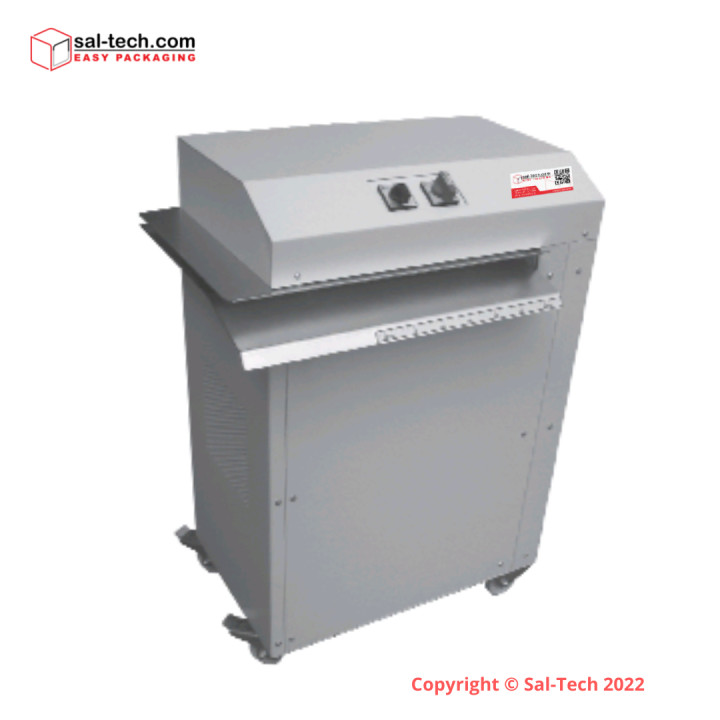

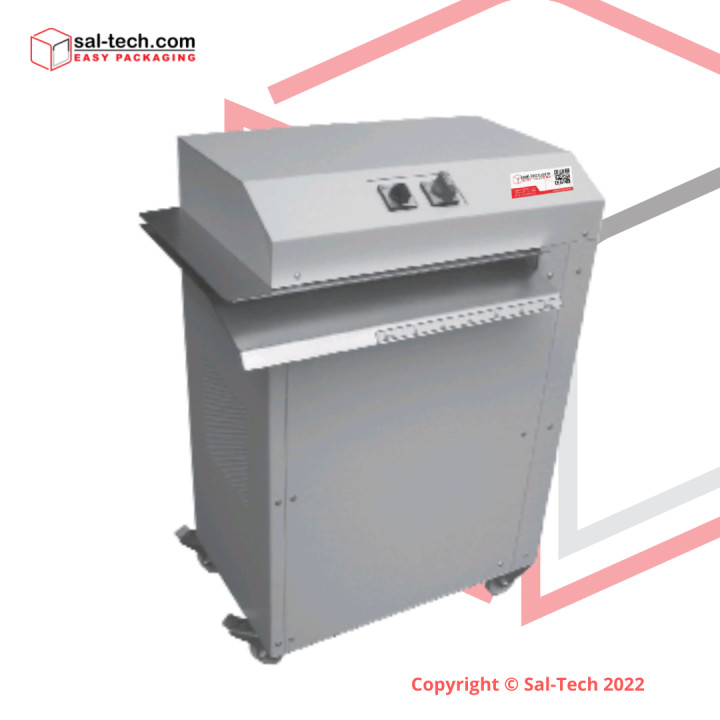

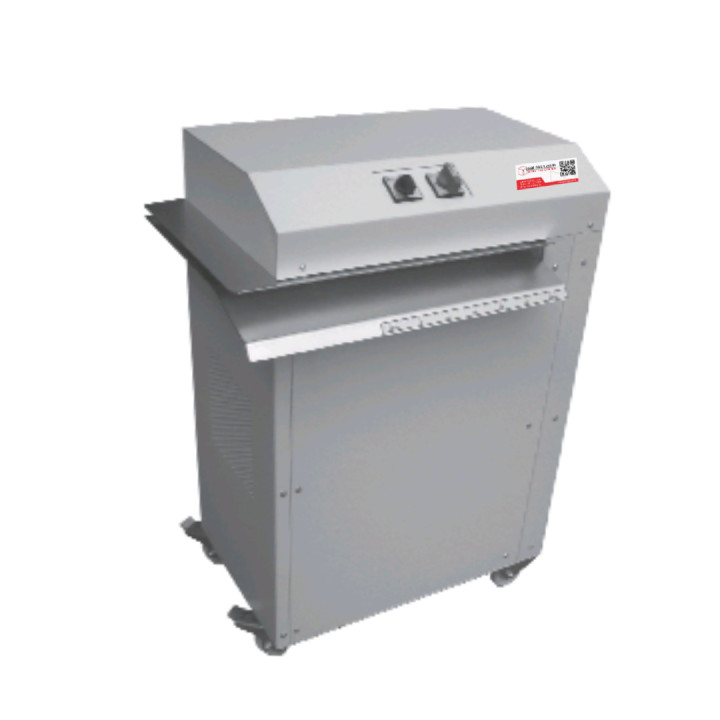

STEP PacMaster S 4x110 mm, 220 V/60 Hz, 3 phase, 4-pole 20 A

Reference 41700010 Items available 0 Condition New
41,900.00 DKK
Tax excluded
STEP PacMaster S efficiently recycles waste cardboard into high-quality packing materials, boasting a throughput of up to 7 cubic meters per hour and a 2,600-watt motor. Its design prioritizes safety and ease of use, featuring an emergency stop and mobile castors, making it ideal for any warehouse or shipping department.
Out-of-Stock
Share
STEP PacMaster S is a game-changing cardboard recycling solution, designed to convert waste into high-quality packaging material with exceptional efficiency. This robust machine features a powerful 2,600-watt motor and achieves a throughput of up to 7 cubic meters per hour, making it ideal for busy warehouses and shipping departments. With advanced safety features like an emergency stop switch and secure castors, the PacMaster S ensures a safe, sustainable, and cost-effective packing process.
Revolutionizing Cardboard Recycling for Efficient Packing Solutions
1. Lockable Main Switch: Includes an emergency stop for safety.
2. Cutting Size Guide: Ensures accurate conversion of cardboard into packaging pads.
3. High Throughput: Capable of processing up to 7 cubic meters of cardboard per hour.
4. Quiet Operation: Has a noise level of 62 dB when idle.
5. Safety Castors with Brakes: Enhances mobility and stability during use.
Specifications
STEP PacMaster S 4x110 mm
STEP PacMaster VS 4x110 mm
Model
220 V/60 Hz, 3 phase, 4-pole 20 A
220-240 V/50-60 Hz, D/F-plug
Weight
approx. 176kg
approx. 205kg
Cutting Width
4 x 110mm
4 x 110mm
Cutting Capacity
2 layers cor. board quality (max. thickness of cor. boards 18mm)
3 layers cor. board quality (max. thickness of cor. boards 18mm)
Inlet guide auxiliary cutter
NA
20mm
Inlet guide, cutting system
15mm
20mm
Working width cutting system
425mm
425mm
Cutting speed
0.18 m/sec.
0.09 - 0.29 m/sec.
Power consumption
3.9 kW
1.9 kW
Power output
2.2 kW
1.1 kW
Intermittent Service
24 min
30 min - 15 min
Supply voltage
400 V/50Hz, 230 V/50Hz, 415 V/50Hz, 220 V/50Hz, 200 V/50Hz, V/60Hz
230 V/50Hz 240 V/50Hz 220 V/50Hz
Pre-fusing
16 A 25 A
16 A 13 A
Width
685 mm
620 mm
Depth
470 mm
500 mm
Height
950 mm
1020 mm
Noise Level
approx. 68.5 dB (A)
approx. 68.5 dB (A)
Item No.
4170010
4170020
  • Reference41700010
STEP PacMaster CatalogOpen or download document Download
